Printing methods for non-woven fabric –Part 1

Printing methods for non-woven fabric –Part 1

1. Screen Print

Screen Print, the process also called silkscreen printing because silk was used in the process.

It is most traditional printing method that provide fast printing and flexible compare to others printing method.In routine life there are cardboard box, which is mostly use screen print.



Definition: Silkscreen Print refers to the use of silk screen as a plate base, and through the photosensitive plate making method, made into a Silkscreen Print plate with pictures and texts. When printing, pour ink on one end of the Silkscreen Print plate, use a squeegee to apply a certain pressure to the ink position on the Silkscreen Print plate, and at the same time move toward the other end of the Silkscreen Print plate at a uniform speed, the ink is moved by the squeegee from the image and text Part of the mesh is squeezed onto the substrate.

WPS图片-修改尺寸

Limitation is it can only print solid colors and normally print 1 4 colors max.



Now the Silkscreen Print has developed from fully manual to semi-automatic and fully automatic. The Roll to Roll” form Silkscreen Print also suitable for large scale print task.



 2.Flexo printing

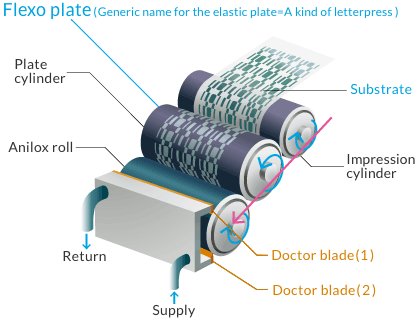

Flexography (often abbreviated to flexo) is a form of printing process which utilizes a flexible relief plate. This is the most reliable way to produce large orders of high-quality custom print at rapid speeds.

 2.Flexo printing

The advantages of flexo printing:

·Runs at extremely high speeds and is ideally suited for long printing runs

·Prints on a wide variety of substrate materials

·Short set-up times with a minimum of waste; guarantees high-quality output

·Eliminates the need for additional work and cost: printing, varnishing, laminating and die cutting can be done in a single pass

·A relatively straightforward and controlled printing process that requires less-trained operators to achieve the desired output

·Low cost of equipment and maintenance



The disadvantages of flexo printing:

·The price of flexo printing plates is relatively high compared to other types of plates, but they last for millions of impressions if they are properly cared for.

·Version changes are time-consuming to make



–Writen by: Mason Xue


Post time: Sep-29-2021
